This is a quick use-case of gganimate to visualize the rise of average temperature in my home town, Stuttgart, Germany.
Get Packages
pacman::p_load(tidyverse, rvest, gganimate)
Get and Save Data
You can get the data from here: https://icdc.cen.uni-hamburg.de/daten/atmosphere/dwd-station.html
The German Weather Service (DWD) provides climate data for more than 70 observation stations from the measurement network in Germany. The stations provide scheduled, daily and monthly readings of temperatures, rainfall, sunshine duration, wind speed, humidity, barometric pressure and cloud cover, which are updated daily.
In this use-case, we are only interested in the temperature in Stuttgart. The available data for the observation station in Stuttgart ranges from 1953 until today.
url <- "http://icdc.cen.uni-hamburg.de/las/ProductServer.do?xml=%3C%3Fxml+version%3D%221.0%22%3F%3E%3ClasRequest+href%3D%22file%3Alas.xml%22%3E%3Clink+match%3D%22%2Flasdata%2Foperations%2Foperation%5B%40ID%3D%27DBExtractRowset%27%5D%22%3E%3C%2Flink%3E%3Cproperties%3E%3Cferret%3E%3Ccomponents%3E+grw_m+antdyn_m+greendyn_m+antsmb_m+ocn_m+greensmb_m+glac_m+gia_m%3C%2Fcomponents%3E%3Cview%3Exy%3C%2Fview%3E%3C%2Fferret%3E%3C%2Fproperties%3E%3Cargs%3E%3Cconstraint+id%3D%22undefined%22+type%3D%22text%22%3E%3Cv%3EStations_Kennziffer%3C%2Fv%3E%3Cv%3E%253D%3C%2Fv%3E%3Cv%3E10738%3C%2Fv%3E%3C%2Fconstraint%3E%3Clink+match%3D%22%2Flasdata%2Fdatasets%2Fdwd_data%2Fvariables%2Favg_temp_day%22%3E%3C%2Flink%3E%3Cregion%3E%3Crange+type%3D%22t%22+low%3D%2201-Jan-1876%22+high%3D%2227-Aug-2018%22%3E%3C%2Frange%3E%3Crange+type%3D%22x%22+low%3D%220%22+high%3D%2224%22%3E%3C%2Frange%3E%3Crange+type%3D%22y%22+low%3D%2240%22+high%3D%2259%22%3E%3C%2Frange%3E%3C%2Fregion%3E%3C%2Fargs%3E%3C%2FlasRequest%3E"
temp_stgt <- read_html(url) %>%
rvest::html_node("table") %>% html_table()
if(!dir.exists("data")) dir.create("data")
temp_stgt <- temp_stgt %>%
janitor::clean_names() %>%
rename(avg_temp_day = luftemperatur_avg) %>%
mutate(t = lubridate::ymd(t)) %>%
mutate(month = lubridate::month(t)) %>%
mutate(day = lubridate::yday(t)) %>%
arrange(t) %>%
mutate(year = lubridate::year(t)) %>%
mutate(time = year) %>%
group_by(year) %>%
mutate(avg_temp_year_year = mean(avg_temp_day)) %>%
ungroup()
save(temp_stgt, file = "data/temp_stgt.Rdata")

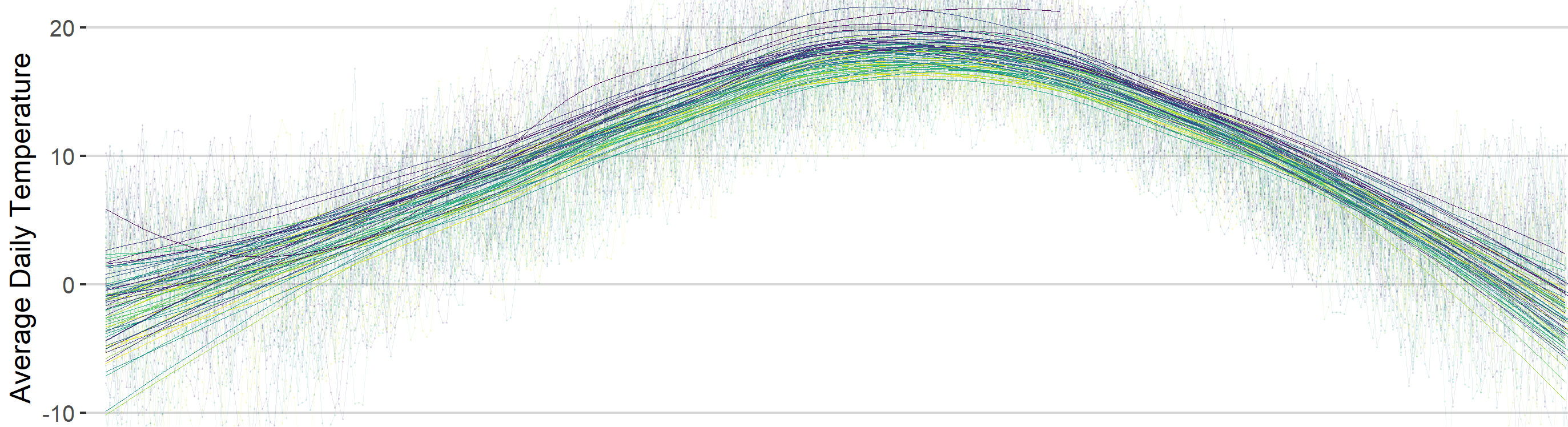

Plot Temperature (Static)
load("data/temp_stgt.Rdata")
months <- c("Jan", "Feb", "Mar", "Apr", "May", "Jun", "Jul", "Aug", "Sep", "Oct", "Nov", "Dec")
temp_stgt %>%
# filter(year %in% c(1960, 1970, 1980, 1990, 2000, 2010, 2018)) %>%
ggplot(aes(day, avg_temp_day, color = year, group = year)) +
geom_point(size = .01, alpha = .1) +
geom_line(size = .01, alpha = .1) +
geom_smooth(se = F, size = .01, alpha = .2) +
viridis::scale_color_viridis("Year", direction = -1, discrete = F,
breaks = c(1953, 1985, 2018),
labels = c(1953, 1985, 2018)) +
ggthemes::theme_hc() +
labs(title = "Average Daily Temperature in Stuttgart (1953 - 2018)",
caption = "Data: Der Deutsche Wetterdienst (DWD)",
y = "Average Daily Temperature", x = "") +
scale_x_continuous(breaks = seq(0, 365, length.out = 12), labels = months) +
guides(colour = guide_colourbar(barwidth = 20, label.position = "bottom"))
if(!dir.exists("images")) dir.create("images")
ggsave(filename = "images/avg_temp_year.png", height = 6, width = 10)
Animations
Average Temperature over Time by Day
temp_stgt_all <- temp_stgt %>%
select(-year)
p1 <- temp_stgt %>%
# filter(year %in% c(1960, 1970, 1980, 1990, 2000, 2010, 2018)) %>%
ggplot(aes(day, avg_temp_day, color = avg_temp_year, group = year)) +
geom_smooth(data = temp_stgt_all, aes(day, avg_temp_day, group = time),
color = "grey", se = F, size = .1, alpha = .1) +
geom_point(size = .5, alpha = .7) +
geom_line(size = .5, alpha = .7) +
viridis::scale_color_viridis("Average Yearly Temperature", direction = -1, discrete = F) +
geom_smooth(se = F, size = 1, alpha = .7) +
ggthemes::theme_hc() +
geom_text(aes(x = 340, y = 28, label = paste0("Year = ", year)), size = 3,
hjust = 1, color = "black") +
geom_text(aes(x = 340, y = 26,
label = paste0("Avg. Temperature = ",
sprintf("%.2f", round(avg_temp_year, 2)), "°C")),
size = 3, color = "black", hjust = 1) +
labs(title = "Average Daily Temperature in Stuttgart (1953 - 2018)",
caption = "Data: Der Deutsche Wetterdienst (DWD)",
y = "Average Daily Temperature", x = "") +
scale_x_continuous(breaks = seq(0, 365, length.out = 12), labels = months) +
guides(colour = guide_colourbar(barwidth = 20, label.position = "bottom")) +
# Here comes the gganimate code
transition_time(
year
) +
enter_fade() +
exit_fade() +
ease_aes('linear')
magick::image_write(
image = animate(p1, width = 1000, height = 600, renderer = magick_renderer(), length = 45),
path = "images/daily_temp.gif"
)
Average Temperature over Time by Year
temp_stgt_allyear <- temp_stgt %>%
filter(year != 2018) %>%
group_by(year) %>%
summarise(avg_temp_year = mean(avg_temp_year)) %>%
mutate(time = year) %>%
select(-year)
p2 <- temp_stgt %>%
filter(year != 2018) %>%
group_by(year) %>%
summarise(avg_temp_year = mean(avg_temp_year)) %>%
ggplot(aes(year, avg_temp_year)) +
geom_smooth(data = temp_stgt_allyear, aes(time, avg_temp_year),
color = "red", se = F, size = .8) +
geom_line(data = temp_stgt_allyear, aes(time, avg_temp_year),
color = "black", size = .8, alpha = .6) +
geom_point(data = temp_stgt_allyear, aes(time, avg_temp_year, color = avg_temp_year), size = 2.5) +
geom_point(aes(color = avg_temp_year), size = 5) +
ggthemes::theme_hc() +
geom_text(aes(x = 1953.5, y = 10.8,
label = paste0("Year = ", year)),
size = 3, color = "black",
hjust = 0) +
geom_text(aes(x = 1953.5, y = 10.7,
label = paste0("Avg. Temperature = ",
sprintf("%.2f", round(avg_temp_year, 2)), "°C")),
size = 3, color = "black", hjust = 0) +
viridis::scale_color_viridis("Average Yearly Temperature", direction = -1, discrete = F) +
labs(title = "Average Yearly Temperature in Stuttgart (1953 - 2017)",
caption = "Data: Der Deutsche Wetterdienst (DWD)",
y = "Average Yearly Temperature", x = "") +
guides(colour = guide_colourbar(barwidth = 20, label.position = "bottom")) +
# Here comes the gganimate code
transition_time(
year
) +
enter_fade() +
exit_fade() +
ease_aes('linear') +
ease_aes('linear')
magick::image_write(
image = animate(p2, width = 1000, height = 600, renderer = magick_renderer(), length = 45),
path = "images/yearly_temp.gif"
)
Average Temperature over Time by Year
p3 <- temp_stgt %>%
filter(year %in% c(1953, 1960, 1990, 2017)) %>%
ggplot(aes(day, avg_temp_day, group = year, color = year)) +
geom_line() +
geom_segment(aes(xend = 365, yend = avg_temp_day), linetype = 2, colour = 'grey') +
geom_point(size = 2) +
geom_text(aes(x = 365, label = year), hjust = 0, size = 3, fontface = "bold") +
coord_cartesian(clip = 'off') +
ggthemes::theme_hc() +
labs(title = "Average Daily Temperature in Stuttgart (1953, 1960, 1990, 2017)",
caption = "Data: Der Deutsche Wetterdienst (DWD)",
y = "Average Daily Temperature", x = "") +
scale_x_continuous(breaks = seq(0, 365, length.out = 12), labels = months) +
viridis::scale_color_viridis("Average Yearly Temperature", direction = -1, discrete = F) +
guides(colour = F) +
theme(title = element_text(size = 15, face = "bold"),
axis.text.x = element_text(size = 14, face = "bold"),
axis.text.y = element_text(size = 10, face = "italic")) +
# Here comes the gganimate code
transition_reveal(year, day) +
enter_fade() +
exit_fade() +
ease_aes('linear')
# create animation
p3 %>% animate(
nframes = 500, fps = 15, width = 1000, height = 600, detail = 3
)
anim_save("images/daily_temp_reveal.gif")
sessionInfo()
R version 3.5.0 (2018-04-23)
Platform: x86_64-w64-mingw32/x64 (64-bit)
Running under: Windows >= 8 x64 (build 9200)
Matrix products: default
locale:
[1] LC_COLLATE=German_Germany.1252 LC_CTYPE=German_Germany.1252
[3] LC_MONETARY=German_Germany.1252 LC_NUMERIC=C
[5] LC_TIME=German_Germany.1252
attached base packages:
[1] stats graphics grDevices utils datasets methods base
other attached packages:
[1] bindrcpp_0.2.2 rvest_0.3.2 xml2_1.2.0 forcats_0.3.0
[5] stringr_1.3.0 dplyr_0.7.6 purrr_0.2.5 readr_1.1.1
[9] tidyr_0.8.1 tibble_1.4.2 tidyverse_1.2.1 gganimate_0.9.9.9999
[13] ggplot2_3.0.0
loaded via a namespace (and not attached):
[1] viridis_0.5.1 httr_1.3.1 jsonlite_1.5 viridisLite_0.3.0
[5] transformr_0.1.0 modelr_0.1.1 assertthat_0.2.0 cellranger_1.1.0
[9] progress_1.2.0 pillar_1.2.1 lattice_0.20-35 glue_1.3.0
[13] digest_0.6.16 colorspace_1.4-0 plyr_1.8.4 psych_1.8.3.3
[17] lpSolve_5.6.13 pkgconfig_2.0.1 devtools_1.13.5 broom_0.4.4
[21] gifski_0.8.3 haven_1.1.2 magick_1.9 patchwork_0.0.1
[25] scales_1.0.0 tweenr_0.1.5.9999 git2r_0.23.0 farver_1.0
[29] pacman_0.4.6 withr_2.1.2 lazyeval_0.2.1 cli_1.0.0
[33] mnormt_1.5-5 magrittr_1.5 crayon_1.3.4 readxl_1.1.0
[37] memoise_1.1.0 nlme_3.1-137 foreign_0.8-70 class_7.3-14
[41] ggthemes_4.0.0 tools_3.5.0 prettyunits_1.0.2 hms_0.4.2
[45] munsell_0.5.0 compiler_3.5.0 e1071_1.6-8 rlang_0.2.2
[49] classInt_0.2-3 units_0.6-0 grid_3.5.0 rstudioapi_0.7
[53] labeling_0.3 gtable_0.2.0 DBI_1.0.0 curl_3.2
[57] reshape2_1.4.3 R6_2.2.2 gridExtra_2.3 lubridate_1.7.4
[61] knitr_1.20 bindr_0.1.1 stringi_1.1.7 parallel_3.5.0
[65] Rcpp_0.12.18 sf_0.6-3 png_0.1-7 spData_0.2.8.3
[69] tidyselect_0.2.4
