This is a short notebook outlining the code used to scrape tweets related to the ECPR Conference 2018 in Hamburg.
Packages
Load the necessary packages
# install pacman once if not avaible on your machine
# install.packages("pacman")
pacman::p_load(tidyverse, purrr, tidyr, rtweet, stringr, ggraph, igraph, tidygraph, forcats)
Get Data
If you want to scrape data yourself you have to
register a free account where you get your personal access point to
Twitter. Check out rtweet on
github and follow their instructions for twitter authentication.
twitter_token <- readRDS("twitter_token.rds")
rt <- search_tweets(
"#ecprconf18 OR #ecprconf2018", n = 5000, include_rts = F, retryonratelimit = T
)
save(rt, file = "data/rt.Rdata")
Lets first look at the data structure and column names. Twitter returns over 1,200 unique tweets.
load("data/rt.Rdata")
rt %>% glimpse # the same as str, returns a df overview
## Observations: 1,399
## Variables: 88
## $ user_id <chr> "21951668", "21951668", "21951668", "2...
## $ status_id <chr> "1033324994552573952", "10325642035535...
## $ created_at <dttm> 2018-08-25 12:07:31, 2018-08-23 09:44...
## $ screen_name <chr> "akreppel", "akreppel", "akreppel", "a...
## $ text <chr> "While the croissants can be treachero...
## $ source <chr> "Twitter for iPhone", "Twitter for iPa...
## $ display_text_width <dbl> 92, 110, 37, 126, 215, 165, 158, 32, 2...
## $ reply_to_status_id <chr> NA, "1032375076652347393", NA, NA, NA,...
## $ reply_to_user_id <chr> NA, "21951668", NA, NA, NA, NA, NA, NA...
## $ reply_to_screen_name <chr> NA, "akreppel", NA, NA, NA, NA, NA, NA...
## $ is_quote <lgl> FALSE, FALSE, FALSE, FALSE, FALSE, FAL...
## $ is_retweet <lgl> FALSE, FALSE, FALSE, FALSE, FALSE, FAL...
## $ favorite_count <int> 0, 2, 5, 2, 14, 9, 0, 2, 5, 5, 5, 2, 8...
## $ retweet_count <int> 0, 0, 0, 0, 5, 5, 0, 0, 4, 1, 1, 2, 2,...
## $ hashtags <list> ["ecprconf18", "ECPRconf2018", "ecprc...
## $ symbols <list> [NA, NA, NA, NA, NA, NA, NA, NA, NA, ...
## $ urls_url <list> [NA, NA, NA, NA, "ecpr.eu/Events/Pane...
## $ urls_t.co <list> [NA, NA, NA, NA, "https://t.co/KIzaT3...
## $ urls_expanded_url <list> [NA, NA, NA, NA, "https://ecpr.eu/Eve...
## $ media_url <list> [NA, NA, NA, NA, "http://pbs.twimg.co...
## $ media_t.co <list> [NA, NA, NA, NA, "https://t.co/4Els2K...
## $ media_expanded_url <list> [NA, NA, NA, NA, "https://twitter.com...
## $ media_type <list> [NA, NA, NA, NA, "photo", NA, "photo"...
## $ ext_media_url <list> [NA, NA, NA, NA, "http://pbs.twimg.co...
## $ ext_media_t.co <list> [NA, NA, NA, NA, "https://t.co/4Els2K...
## $ ext_media_expanded_url <list> [NA, NA, NA, NA, "https://twitter.com...
## $ ext_media_type <chr> NA, NA, NA, NA, NA, NA, NA, NA, NA, NA...
## $ mentions_user_id <list> [NA, NA, NA, NA, NA, "49383083", NA, ...
## $ mentions_screen_name <list> [NA, NA, NA, NA, NA, "ulrikeguerot", ...
## $ lang <chr> "en", "en", "en", "en", "en", "en", "e...
## $ quoted_status_id <chr> NA, NA, NA, NA, NA, NA, NA, NA, "10329...
## $ quoted_text <chr> NA, NA, NA, NA, NA, NA, NA, NA, "\"Rev...
## $ quoted_created_at <dttm> NA, NA, NA, NA, NA, NA, NA, NA, 2018-...
## $ quoted_source <chr> NA, NA, NA, NA, NA, NA, NA, NA, "Twitt...
## $ quoted_favorite_count <int> NA, NA, NA, NA, NA, NA, NA, NA, 12, NA...
## $ quoted_retweet_count <int> NA, NA, NA, NA, NA, NA, NA, NA, 3, NA,...
## $ quoted_user_id <chr> NA, NA, NA, NA, NA, NA, NA, NA, "18984...
## $ quoted_screen_name <chr> NA, NA, NA, NA, NA, NA, NA, NA, "Lafle...
## $ quoted_name <chr> NA, NA, NA, NA, NA, NA, NA, NA, "Jean-...
## $ quoted_followers_count <int> NA, NA, NA, NA, NA, NA, NA, NA, 497, N...
## $ quoted_friends_count <int> NA, NA, NA, NA, NA, NA, NA, NA, 356, N...
## $ quoted_statuses_count <int> NA, NA, NA, NA, NA, NA, NA, NA, 335, N...
## $ quoted_location <chr> NA, NA, NA, NA, NA, NA, NA, NA, "Belgi...
## $ quoted_description <chr> NA, NA, NA, NA, NA, NA, NA, NA, "Assoc...
## $ quoted_verified <lgl> NA, NA, NA, NA, NA, NA, NA, NA, FALSE,...
## $ retweet_status_id <chr> NA, NA, NA, NA, NA, NA, NA, NA, NA, NA...
## $ retweet_text <chr> NA, NA, NA, NA, NA, NA, NA, NA, NA, NA...
## $ retweet_created_at <dttm> NA, NA, NA, NA, NA, NA, NA, NA, NA, N...
## $ retweet_source <chr> NA, NA, NA, NA, NA, NA, NA, NA, NA, NA...
## $ retweet_favorite_count <int> NA, NA, NA, NA, NA, NA, NA, NA, NA, NA...
## $ retweet_retweet_count <int> NA, NA, NA, NA, NA, NA, NA, NA, NA, NA...
## $ retweet_user_id <chr> NA, NA, NA, NA, NA, NA, NA, NA, NA, NA...
## $ retweet_screen_name <chr> NA, NA, NA, NA, NA, NA, NA, NA, NA, NA...
## $ retweet_name <chr> NA, NA, NA, NA, NA, NA, NA, NA, NA, NA...
## $ retweet_followers_count <int> NA, NA, NA, NA, NA, NA, NA, NA, NA, NA...
## $ retweet_friends_count <int> NA, NA, NA, NA, NA, NA, NA, NA, NA, NA...
## $ retweet_statuses_count <int> NA, NA, NA, NA, NA, NA, NA, NA, NA, NA...
## $ retweet_location <chr> NA, NA, NA, NA, NA, NA, NA, NA, NA, NA...
## $ retweet_description <chr> NA, NA, NA, NA, NA, NA, NA, NA, NA, NA...
## $ retweet_verified <lgl> NA, NA, NA, NA, NA, NA, NA, NA, NA, NA...
## $ place_url <chr> NA, NA, NA, NA, NA, NA, NA, NA, "https...
## $ place_name <chr> NA, NA, NA, NA, NA, NA, NA, NA, "Hambu...
## $ place_full_name <chr> NA, NA, NA, NA, NA, NA, NA, NA, "Hambu...
## $ place_type <chr> NA, NA, NA, NA, NA, NA, NA, NA, "city"...
## $ country <chr> NA, NA, NA, NA, NA, NA, NA, NA, "Germa...
## $ country_code <chr> NA, NA, NA, NA, NA, NA, NA, NA, "DE", ...
## $ geo_coords <list> [<NA, NA>, <NA, NA>, <NA, NA>, <NA, N...
## $ coords_coords <list> [<NA, NA>, <NA, NA>, <NA, NA>, <NA, N...
## $ bbox_coords <list> [<NA, NA, NA, NA, NA, NA, NA, NA>, <N...
## $ status_url <chr> "https://twitter.com/akreppel/status/1...
## $ name <chr> "(((Amie Kreppel)))", "(((Amie Kreppel...
## $ location <chr> "Florida, USA", "Florida, USA", "Flori...
## $ description <chr> "Jean Monnet Chair and Associate Profe...
## $ url <chr> NA, NA, NA, NA, "https://t.co/MslGy2Ml...
## $ protected <lgl> FALSE, FALSE, FALSE, FALSE, FALSE, FAL...
## $ followers_count <int> 296, 296, 296, 296, 1245, 1245, 1245, ...
## $ friends_count <int> 355, 355, 355, 355, 475, 475, 475, 475...
## $ listed_count <int> 12, 12, 12, 12, 85, 85, 85, 85, 109, 1...
## $ statuses_count <int> 2789, 2789, 2789, 2789, 8805, 8805, 88...
## $ favourites_count <int> 3980, 3980, 3980, 3980, 0, 0, 0, 0, 24...
## $ account_created_at <dttm> 2009-02-26 01:23:21, 2009-02-26 01:23...
## $ verified <lgl> FALSE, FALSE, FALSE, FALSE, FALSE, FAL...
## $ profile_url <chr> NA, NA, NA, NA, "https://t.co/MslGy2Ml...
## $ profile_expanded_url <chr> NA, NA, NA, NA, "http://www.jaruizso.e...
## $ account_lang <chr> "en", "en", "en", "en", "en", "en", "e...
## $ profile_banner_url <chr> "https://pbs.twimg.com/profile_banners...
## $ profile_background_url <chr> "http://abs.twimg.com/images/themes/th...
## $ profile_image_url <chr> "http://pbs.twimg.com/profile_images/2...
The top ten retweeted tweets.
# load("rt.Rdata")
rt %>%
select(screen_name, text, retweet_count) %>%
filter(!str_detect(text, "^RT")) %>%
mutate(text = str_replace_all(text, "\\\n", " ")) %>%
arrange(desc(retweet_count)) %>%
top_n(n = 10) %>%
knitr::kable(., format = "markdown")
| screen_name | text | retweet_count |
|---|---|---|
| jrteruel | Cataluña y Escocia no son tan parecidas! Un análisis de discurso halla notables diferencias entre independentismos: recurrente retórica populista en Cat, pero no en Esc. Interesante esto d @josejolivas presentado en el panel de @_ignaciomolina https://t.co/DuGF8ppfq6 #ecprconf18 https://t.co/OAh4CMMlqc | 64 |
| policy_politics | A special issue challenging scholars of policy theory to change the way they produce and communicate research. Read it for free until 20 September: https://t.co/iaMl4s08C6 #ecprconf18 @ECPR @CairneyPaul @chris_weible https://t.co/TsQBSlfN6T | 27 |
| DelDemUCan | The countdown begins for the #ecprconf18 in Hamburg! Section conveners @NicoleCurato & @_SofieMarien put together a schedule of democratic innovations panels here. Check it out https://t.co/e8PVzo8foA https://t.co/kfEwLE6swv | 23 |
| BJPolS | We are pleased to offer free access to a selection of the most-cited BJPolS articles until the end of 2018: https://t.co/G2wKHDnTdL #ecprconf18 https://t.co/rR7uPOwgCS | 20 |
| antje_wiener | Delighted to see the book published: #Contestation and #Constitution of #Norms in #GlobalIR @CUP_PoliSci @CUP_Law @InternatlTheory @JacquiTrue @SassanGholiagha @JuttaBrunnee @womenalsoknow #ecprconf18 https://t.co/IbZUclVRpd | 19 |
| CUP_PoliSci | Do you want to know what to do with your first book proposal? Read a series of blog posts from a @CambridgeUP Publisher: https://t.co/vGFEmb3r48 #ecprconf18 https://t.co/Z34hmGWfSe | 18 |
| ECPR | Are you joining us at the University of Hamburg for #ecprconf18? Rejoice! The printed programme is now available to view online https://t.co/GN8e81PaXx https://t.co/4lZBbhLxV0 | 16 |
| LauraSeelkopf | And here is the detailed programme of our section on the politics of taxation #ecprconf18 : come and listen to 7 panels with 32 papers written by 48 scholars from 40 different institutions and four continents https://t.co/1ZcM1No3ck | 14 |
| sarahcpolitics | Presenting at #ecprconf18 paper on political protest in the context of the global financial crisis. I find the crisis triggered mobilisations, but depressed participation trends more broadly. Saturday 2pm VMP 5, Rm 2067. @ValuesStudies. Download the paper: https://t.co/TlPdTydQdf https://t.co/PzzAPiPrYp | 14 |
| kimgron | The #ecprconf18 starts on Thursday in Hamburg. We have a full #DemInno section 👍 Also, don’t miss the Standing Group on Democratic Innovations meeting on Friday at 1 pm, Building VMP 8, Room 105. Steering Committee candidates will present themselves there, election in September | 14 |
Timeline
What was the best time to tweet?
rt %>%
## parse date format
mutate(
cdate = created_at %>%
str_extract("\\d{4}-\\d{2}-\\d{2}") %>%
lubridate::ymd(),
hour = lubridate::hour(created_at)
) %>%
## select relevant time period
filter(cdate >= as.Date("2018-08-23")) %>%
## count tweet per and and hour
group_by(cdate, hour) %>%
tally %>%
ungroup %>%
ggplot(aes(hour, n)) +
geom_line() +
## split the visualization
facet_wrap(~cdate, ncol = 1) +
theme_minimal() +
ggtitle("Number of Tweets by Day and Hour") +
xlab("Hour of the Day") +
ylab("Number of Tweets")

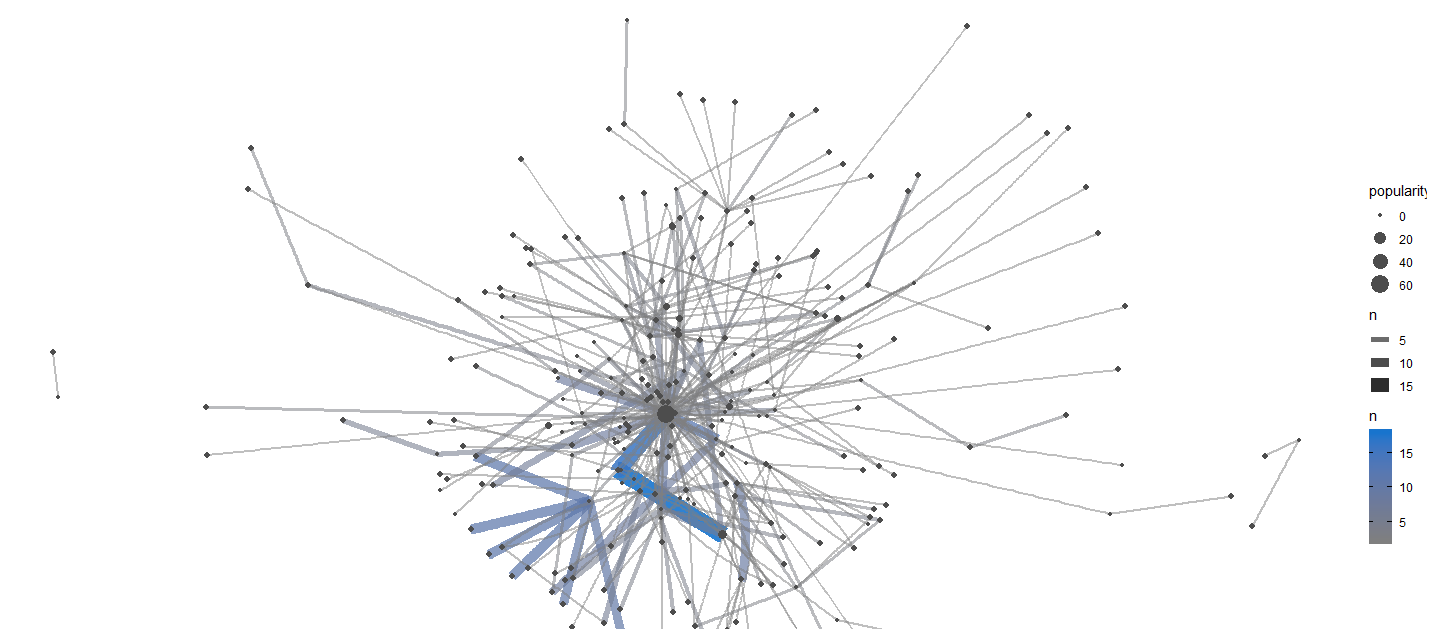

Mentions Network
rt_graph <- rt %>%
## select relevant variables
dplyr::select(screen_name, mentions_screen_name) %>%
## unnest list of mentions_screen_name
unnest %>%
## count the number of coocurences
group_by(screen_name, mentions_screen_name) %>%
tally(sort = T) %>%
ungroup %>%
## drop missing values
drop_na %>%
## filter those coocurences that appear at least 2 times
filter(n > 1) %>%
## transforming the dataframe to a graph object
as_tbl_graph() %>%
## calculating node centrality
mutate(popularity = centrality_degree(mode = 'in'))
rt_graph %>%
## create graph layout
ggraph(layout = "kk") +
## define edge aestetics
geom_edge_fan(aes(alpha = n, edge_width = n, color = n)) +
## scale down link saturation
scale_edge_alpha(range = c(.5, .9)) +
## define note size param
scale_edge_color_gradient(low = "gray50", high = "#1874CD") +
geom_node_point(aes(size = popularity), color = "gray30") +
## equal width and height
coord_fixed() +
## plain theme
theme_void() +
## title
ggtitle("#ecprconf18 Twitter Mentions Network")
rt_graph %>%
## create graph layout
ggraph(layout = "kk") +
## define edge aestetics
geom_edge_fan(aes(alpha = n, edge_width = n, color = n)) +
## scale down link saturation
scale_edge_alpha(range = c(.5, .9)) +
## define note size param
scale_edge_color_gradient(low = "gray50", high = "#1874CD") +
geom_node_point(aes(size = popularity), color = "gray30") +
## define node labels
geom_node_text(aes(label = name), repel = T, fontface = "bold") +
## equal width and height
coord_fixed() +
## plain theme
theme_void() +
## title
ggtitle("#ecprconf18 Twitter Mentions Network")
rt_graph %>%
## create graph layout
ggraph(layout = "circle") +
## define edge aestetics
geom_edge_fan(aes(alpha = n, edge_width = n, color = n)) +
## scale down link saturation
scale_edge_alpha(range = c(.5, .9)) +
## define note size param
scale_edge_color_gradient(low = "gray50", high = "#1874CD") +
geom_node_point(aes(size = popularity), color = "gray30") +
## define node labels
geom_node_text(aes(label = name), repel = F, fontface = "bold") +
## equal width and height
coord_fixed() +
## plain theme
theme_void() +
## title
ggtitle("#ecprconf18 Twitter Mentions Network")
Smaller Mentions Network (n > 2)
rt_graph2 <- rt %>%
## select relevant variables
dplyr::select(screen_name, mentions_screen_name) %>%
## unnest list of mentions_screen_name
unnest %>%
## count the number of coocurences
group_by(screen_name, mentions_screen_name) %>%
tally(sort = T) %>%
ungroup %>%
## drop missing values
drop_na %>%
## filter those coocurences that appear at least 2 times
filter(n > 2) %>%
## transforming the dataframe to a graph object
as_tbl_graph() %>%
## calculating node centrality
mutate(popularity = centrality_degree(mode = 'in'))
rt_graph2 %>%
## create graph layout
ggraph(layout = "kk") +
## define edge aestetics
geom_edge_fan(aes(alpha = n, edge_width = n, color = n)) +
## scale down link saturation
scale_edge_alpha(range = c(.5, .9)) +
## define note size param
scale_edge_color_gradient(low = "gray50", high = "#1874CD") +
geom_node_point(aes(size = popularity), color = "gray30") +
## equal width and height
coord_fixed() +
geom_node_text(aes(label = name), repel = T, fontface = "bold") +
## plain theme
theme_void() +
## title
ggtitle("#ecprconf18 Twitter Mentions Network")
Most Frequent Hashtags
rt_hashtags <- rt %>%
select(hashtags) %>%
## unnest list of hastags
unnest %>%
na.omit %>%
## clean hashtags
mutate(hashtags = stringr::str_to_lower(hashtags) %>%
str_replace_all("2018", "18") %>%
## add #symbol to vector
paste0("#", .)) %>%
## count each hashtag and sort
count(hashtags, sort = T) %>%
filter(n > 5)
rt_hashtags %>%
filter(hashtags != "#ecprconf18") %>%
mutate(hashtags = forcats::fct_reorder(hashtags, n)) %>%
ggplot(aes(hashtags, n)) +
geom_bar(stat = "identity", alpha = .7) +
coord_flip() +
theme_minimal() +
ggtitle("Most Frequent Hastags related to #ecprconf18")
Most Frequent Bigram Network
gg_bigram <- rt %>%
select(text) %>%
## remove text noise
mutate(text = stringr::str_remove_all(text, "w |amp ")) %>%
## remove retweets
filter(!stringr::str_detect(text, "^RT")) %>%
## remove urls
mutate(text = stringr::str_remove_all(text, "https?[:]//[[:graph:]]+")) %>%
mutate(id = 1:n()) %>%
## split text into words
tidytext::unnest_tokens(word, text, token = "words") %>%
## remove stop words
anti_join(tidytext::stop_words) %>%
## paste words to text by id
group_by(id) %>%
summarise(text = paste(word, collapse = " ")) %>%
ungroup %>%
## again split text into bigrams (word occurences or collocations)
tidytext::unnest_tokens(bigram, text, token = "ngrams", n = 2) %>%
separate(bigram, c("word1", "word2"), sep = " ") %>%
## remove the hashtag and count bigrams
filter(word1 != "ecprconf18", word2 != "ecprconf18") %>%
count(word1, word2, sort = T) %>%
## select first 100
slice(1:100) %>%
drop_na() %>%
## create tidy graph object
as_tbl_graph() %>%
## calculate node centrality
mutate(Popularity = centrality_degree(mode = 'in'))
gg_bigram %>%
ggraph() +
geom_edge_link(aes(edge_alpha = n, edge_width = n)) +
geom_node_point(aes(size = Popularity)) +
geom_node_text(aes(label = name), repel = TRUE) +
theme_void() +
scale_edge_alpha("", range = c(0.3, .6)) +
ggtitle("Top Bigram Network from Tweets using hashtag #ecprconf18")
sessionInfo()
## R version 3.5.0 (2018-04-23)
## Platform: x86_64-w64-mingw32/x64 (64-bit)
## Running under: Windows 10 x64 (build 17134)
##
## Matrix products: default
##
## locale:
## [1] LC_COLLATE=German_Germany.1252 LC_CTYPE=German_Germany.1252
## [3] LC_MONETARY=German_Germany.1252 LC_NUMERIC=C
## [5] LC_TIME=German_Germany.1252
##
## attached base packages:
## [1] stats graphics grDevices utils datasets methods base
##
## other attached packages:
## [1] bindrcpp_0.2.2 tidygraph_1.1.0 igraph_1.2.1
## [4] ggraph_1.0.1.9999 rtweet_0.6.7.9000 forcats_0.3.0
## [7] stringr_1.3.0 dplyr_0.7.5 purrr_0.2.4
## [10] readr_1.1.1 tidyr_0.8.1 tibble_1.4.2
## [13] ggplot2_3.0.0.9000 tidyverse_1.2.1
##
## loaded via a namespace (and not attached):
## [1] ggrepel_0.8.0 Rcpp_0.12.18 lubridate_1.7.4
## [4] lattice_0.20-35 assertthat_0.2.0 rprojroot_1.3-2
## [7] digest_0.6.15 psych_1.8.3.3 ggforce_0.1.3
## [10] R6_2.2.2 cellranger_1.1.0 plyr_1.8.4
## [13] backports_1.1.2 evaluate_0.10.1 highr_0.6
## [16] httr_1.3.1 pillar_1.2.1 rlang_0.2.1
## [19] lazyeval_0.2.1 readxl_1.1.0 rstudioapi_0.7
## [22] Matrix_1.2-14 rmarkdown_1.9 labeling_0.3
## [25] tidytext_0.1.9 foreign_0.8-70 munsell_0.4.3
## [28] broom_0.4.4 janeaustenr_0.1.5 compiler_3.5.0
## [31] modelr_0.1.1 pkgconfig_2.0.1 mnormt_1.5-5
## [34] htmltools_0.3.6 tidyselect_0.2.4 gridExtra_2.3
## [37] viridisLite_0.3.0 crayon_1.3.4 withr_2.1.2
## [40] SnowballC_0.5.1 MASS_7.3-49 grid_3.5.0
## [43] nlme_3.1-137 jsonlite_1.5 gtable_0.2.0
## [46] pacman_0.4.6 magrittr_1.5 tokenizers_0.2.1
## [49] units_0.6-0 scales_0.5.0 cli_1.0.0
## [52] stringi_1.1.7 farver_1.0 reshape2_1.4.3
## [55] viridis_0.5.1 xml2_1.2.0 tools_3.5.0
## [58] glue_1.3.0 tweenr_0.1.5.9999 hms_0.4.2
## [61] parallel_3.5.0 yaml_2.1.19 colorspace_1.4-0
## [64] rvest_0.3.2 knitr_1.20 bindr_0.1.1
## [67] haven_1.1.2
